Compatible Drag Chain Power Cable
This is a third-party replacement drag-chain power cable designed for use with Haozhi DGZYC-20045/19-FWVCS spindle systems. It is not manufactured or endorsed by Haozhi. Connectors, pin assignment, shielding, cable material and length are produced according to the customer's confirmed machine configuration.
Key Features
- Continuous-flex cable construction for drag-chain applications.
- Shielded design options for industrial motor power transmission.
- Oil-resistant, abrasion-resistant PVC or PUR jacket options.
- Custom cable length and connector configuration available.
- Each finished cable can be electrically tested before shipment.
Encoder Signal Cable Also Available
A matching encoder feedback / signal cable compatible with the Haozhi DGZYC-20045/19-FWVCS spindle can also be supplied. Please provide connector photographs, a wiring diagram or pinout when requesting an encoder signal cable.
Information Required Before Ordering
- Exact spindle and machine model.
- Clear photographs of both connectors and their keying.
- Pin assignment or original wiring diagram.
- Required finished cable length.
- Installation environment and drag-chain bending requirements.
Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 电机类型 | 三相交流永磁同步电机 |
|---|---|
| 最高转速 (rpm) | 4500 |
| 最大电流 (A) | 92 |
| 最大扭矩 (N・m) | 398 |
| 额定电压 (V) | 380 |
| 额定功率 (S1/100%)(kW) | 19 |
| 额定扭矩 (S1/100%)(N・m) | 181 |
| 平衡等级 | G0.4 |
| 润滑形式 | 油脂 |
| 鼻端形式 | A2-6 |
| 锥孔锥度 | 1:20 |
| 锥面跳动 (mm) | ≤0.003 |
| 前端面跳动 (mm) | ≤0.003 |
| 标准棒 300mm 处跳动 | ≤0.008 |
| 轴承型号 | NN3020 + N1017 + 2×100B |
| 通孔直径 (mm) | φ66 |
| 编码器 | 1Vp-p 弦波编码器 / 新代编码器 |
| 重量 (kg) | 131 |
| 安装方式 | 卧式安装 |

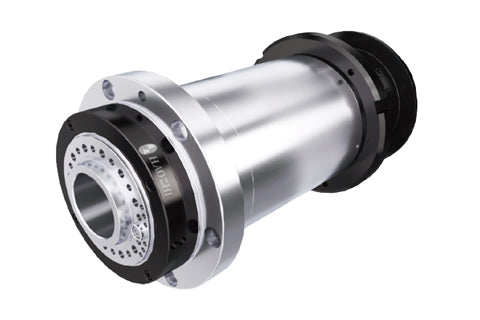

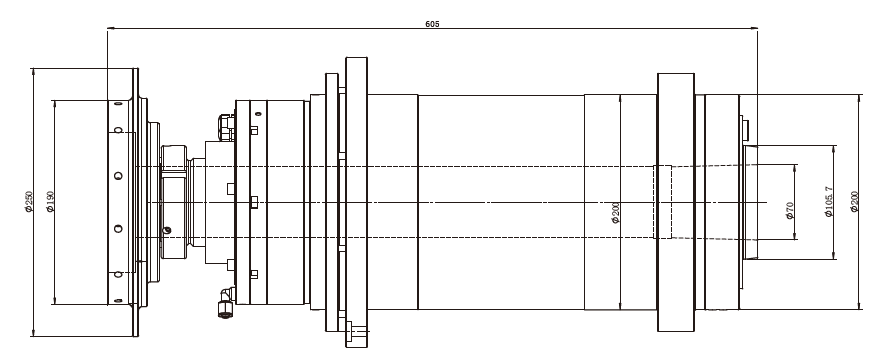

Compatible model: Haozhi DGZYC-20045/19-FWVCS
Reference series: 车床电主轴
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
