Drag Chain Power Cable Compatible with Haozhi DQF-400 Spindle
Drag Chain Power Cable Compatible with Haozhi DQF-400 Spindle
Please contact customer service for a quotation before ordering.
下单前请联系客服确认价格、交期、接口、针脚定义及适配性。
Compatible Drag Chain Power Cable
This is a third-party replacement drag-chain power cable designed for use with Haozhi DQF-400 spindle systems. It is not manufactured or endorsed by Haozhi. Connectors, pin assignment, shielding, cable material and length are produced according to the customer's confirmed machine configuration.
Key Features
- Continuous-flex cable construction for drag-chain applications.
- Shielded design options for industrial motor power transmission.
- Oil-resistant, abrasion-resistant PVC or PUR jacket options.
- Custom cable length and connector configuration available.
- Each finished cable can be electrically tested before shipment.
Encoder Signal Cable Also Available
A matching encoder feedback / signal cable compatible with the Haozhi DQF-400 spindle can also be supplied. Please provide connector photographs, a wiring diagram or pinout when requesting an encoder signal cable.
Information Required Before Ordering
- Exact spindle and machine model.
- Clear photographs of both connectors and their keying.
- Pin assignment or original wiring diagram.
- Required finished cable length.
- Installation environment and drag-chain bending requirements.

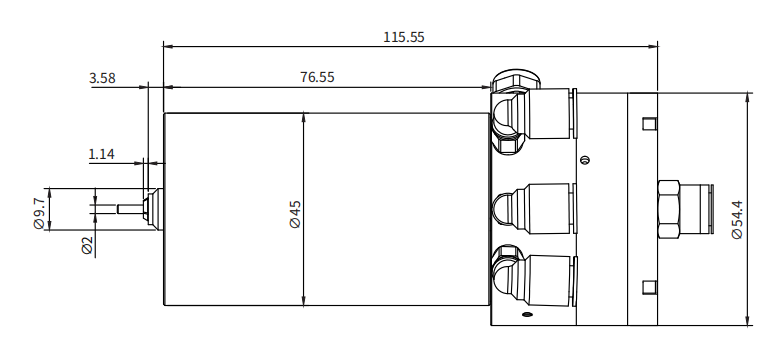

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 参数项 | 高速绕组 |
|---|---|
| 最高转速 | 400000 rpm |
| 最高电压 | 200 V |
| 额定功率 S6 | 0.72 kW |
| 额定转矩 S6 | 0.017 N·m |
| 最高频率 | 6667 Hz |
| 额定电流 S6 | 2.4 A |
| 夹头扭矩 | ≥25.4 N·cm |
| 振动值 | ≤0.6 mm/s |
| 冷却形式及介质 | 内冷，水或油 |
| 冷却系统冷却液流量 | 水：≥1.2 L/min（水压力 0.2MPa） |

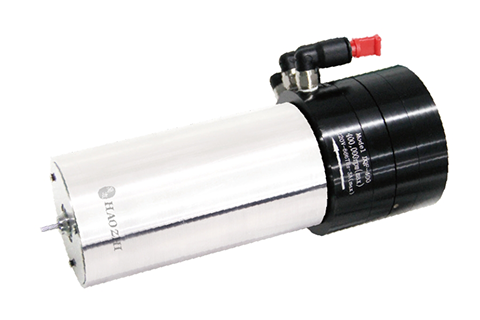

Compatible model: Haozhi DQF-400
Reference series: 气浮主轴系列
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
