Drag Chain Power Cable Compatible with Haozhi DZDC-630-100/100-2600/1100-A26W-A/A Spindle
Drag Chain Power Cable Compatible with Haozhi DZDC-630-100/100-2600/1100-A26W-A/A Spindle
Please contact customer service for a quotation before ordering.
下单前请联系客服确认价格、交期、接口、针脚定义及适配性。
Compatible Drag Chain Power Cable
This is a third-party replacement drag-chain power cable designed for use with Haozhi DZDC-630-100/100-2600/1100-A26W-A/A spindle systems. It is not manufactured or endorsed by Haozhi. Connectors, pin assignment, shielding, cable material and length are produced according to the customer's confirmed machine configuration.
Key Features
- Continuous-flex cable construction for drag-chain applications.
- Shielded design options for industrial motor power transmission.
- Oil-resistant, abrasion-resistant PVC or PUR jacket options.
- Custom cable length and connector configuration available.
- Each finished cable can be electrically tested before shipment.
Encoder Signal Cable Also Available
A matching encoder feedback / signal cable compatible with the Haozhi DZDC-630-100/100-2600/1100-A26W-A/A spindle can also be supplied. Please provide connector photographs, a wiring diagram or pinout when requesting an encoder signal cable.
Information Required Before Ordering
- Exact spindle and machine model.
- Clear photographs of both connectors and their keying.
- Pin assignment or original wiring diagram.
- Required finished cable length.
- Installation environment and drag-chain bending requirements.

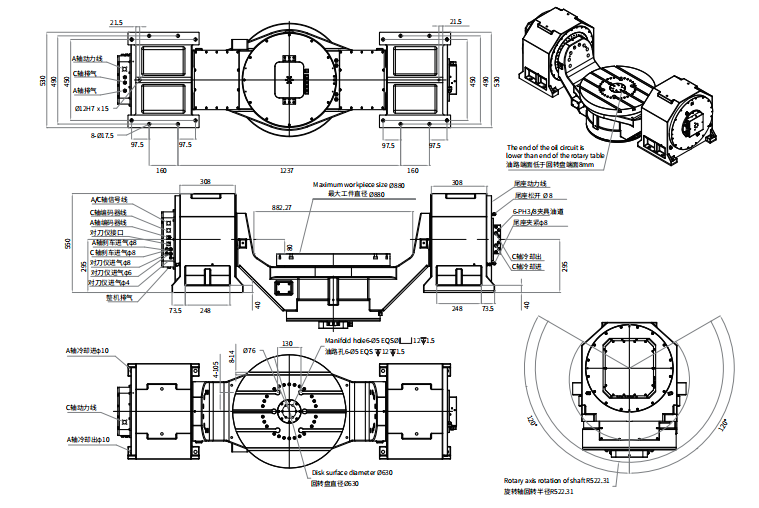

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 参数项 | A 轴 |
|---|---|
| 盘面直径 (mm) | / |
| 中心高度 (mm) | 295 |
| 盘面高度 (mm) | / |
| 中心孔直径 (mm) | / |
| 夹紧方式 | 气压 |
| 夹紧扭矩 (N・m) | 5600(@0.5MPa) |
| 盘面端面跳动 (mm) | / |
| 盘面径向跳动 (mm) | / |
| 驱动方式 | 力矩电机直驱 |
| 驱动器输入电压 (V) | 380 |
| 额定 / 最高转速 (rpm) | 100/100 |
| 额定 / 最高扭矩 (N・m) | 1300×2 / 2580×2 |
| 额定 / 最高电流 (A) | 29×2 / 59×2 |
| 输出功率 S1 100%(kW) | 13.5×2 |
| 输出功率 S6 40%(kW) | 20.25×2 |
| 气封气流量 (L/min) | / |
| 冷却方式 | 水冷 |
| 冷却流量 (L/min) | ≥7.5×2 |
| 电机温度传感器类型 | KTY84-130 |
| 定位精度 (arc-sec) | ±5(10) |
| 重复定位精度 (arc-sec) | ±1.5(3) |

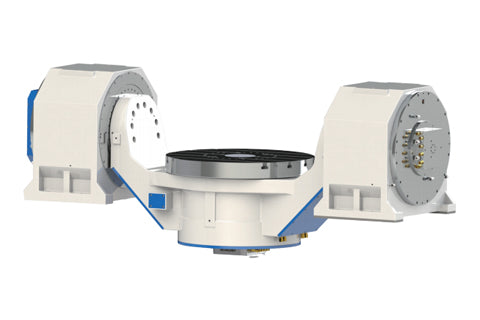

Compatible model: Haozhi DZDC-630-100/100-2600/1100-A26W-A/A
Reference series: 五轴转台
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
