Drag Chain Power Cable Compatible with Haozhi DGZYX-24012/55-HSK Spindle
Drag Chain Power Cable Compatible with Haozhi DGZYX-24012/55-HSK Spindle
Please contact customer service for a quotation before ordering.
下单前请联系客服确认价格、交期、接口、针脚定义及适配性。
Compatible Drag Chain Power Cable
This is a third-party replacement drag-chain power cable designed for use with Haozhi DGZYX-24012/55-HSK spindle systems. It is not manufactured or endorsed by Haozhi. Connectors, pin assignment, shielding, cable material and length are produced according to the customer's confirmed machine configuration.
Key Features
- Continuous-flex cable construction for drag-chain applications.
- Shielded design options for industrial motor power transmission.
- Oil-resistant, abrasion-resistant PVC or PUR jacket options.
- Custom cable length and connector configuration available.
- Each finished cable can be electrically tested before shipment.
Encoder Signal Cable Also Available
A matching encoder feedback / signal cable compatible with the Haozhi DGZYX-24012/55-HSK spindle can also be supplied. Please provide connector photographs, a wiring diagram or pinout when requesting an encoder signal cable.
Information Required Before Ordering
- Exact spindle and machine model.
- Clear photographs of both connectors and their keying.
- Pin assignment or original wiring diagram.
- Required finished cable length.
- Installation environment and drag-chain bending requirements.

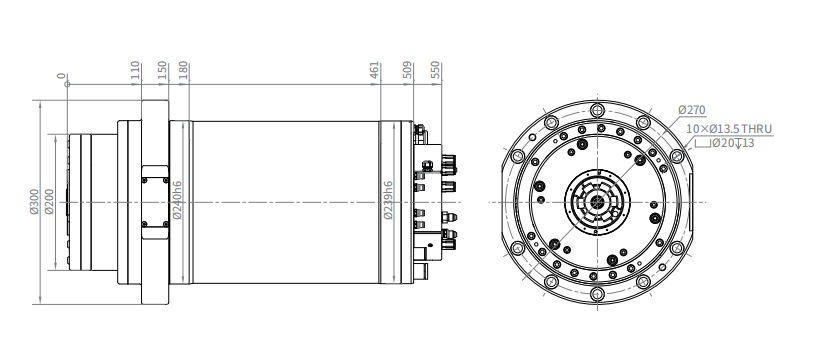

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 主轴配合直径 | Φ240mm |
|---|---|
| 刀柄接口型号 | HSK-A100 / HSK-T100 |
| 轴承润滑形式 | 油脂 |
| 电机类型 | 同步 |
| 最高转速 | 12,000rpm |
| 电压 | 380V |
| 额定功率（S1-100%） | 55kW |
| 额定扭矩（S1-100%） | 180.5N·m |
| 额定功率（S6-40%） | 82.5kW |
| 额定扭矩（S6-40%） | 270.8N·m |
| 冷却方式 | 水冷（推荐） |
| 刀具外冷（环喷） | 水 / 油 / 油雾 / 空气 |
| 刀具内冷（中心冷却） | 水 / 油 / 油雾 / 干空气 |
| 换刀方式 | 油缸 |
| 电机温度传感器 | KTY84-130、PTC |
| 轴承温度传感器 | PT100 |
| 编码器 | Sin/cos,1VPP |
Compatible model: Haozhi DGZYX-24012/55-HSK
Reference series: 加工中心系列主轴
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
