Drag Chain Power Cable Compatible with Haozhi DYFDM-150(080)15/5.5-XWS Spindle
Drag Chain Power Cable Compatible with Haozhi DYFDM-150(080)15/5.5-XWS Spindle
Please contact customer service for a quotation before ordering.
下单前请联系客服确认价格、交期、接口、针脚定义及适配性。
Compatible Drag Chain Power Cable
This is a third-party replacement drag-chain power cable designed for use with Haozhi DYFDM-150(080)15/5.5-XWS spindle systems. It is not manufactured or endorsed by Haozhi. Connectors, pin assignment, shielding, cable material and length are produced according to the customer's confirmed machine configuration.
Key Features
- Continuous-flex cable construction for drag-chain applications.
- Shielded design options for industrial motor power transmission.
- Oil-resistant, abrasion-resistant PVC or PUR jacket options.
- Custom cable length and connector configuration available.
- Each finished cable can be electrically tested before shipment.
Encoder Signal Cable Also Available
A matching encoder feedback / signal cable compatible with the Haozhi DYFDM-150(080)15/5.5-XWS spindle can also be supplied. Please provide connector photographs, a wiring diagram or pinout when requesting an encoder signal cable.
Information Required Before Ordering
- Exact spindle and machine model.
- Clear photographs of both connectors and their keying.
- Pin assignment or original wiring diagram.
- Required finished cable length.
- Installation environment and drag-chain bending requirements.
Compatible Equipment Reference Specifications

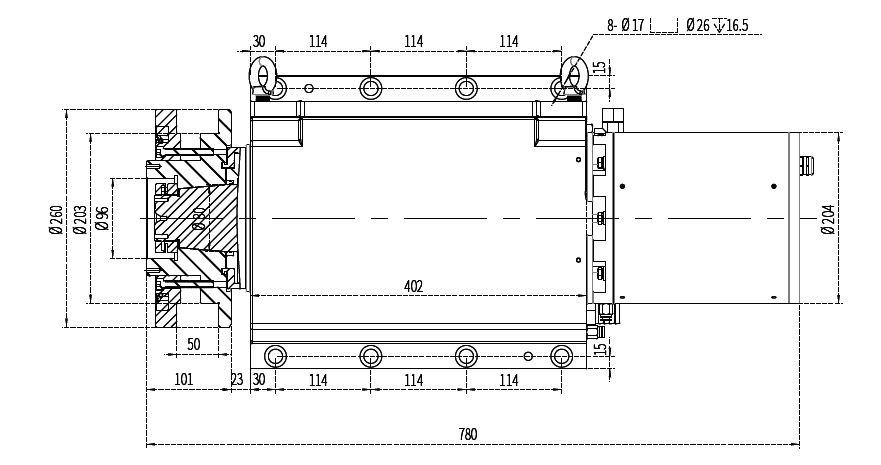

The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 中心高 | 170mm |
|---|---|
| 润滑油牌号 | ISO VG5 |
| 供油压力 | 2.5-5.0MPa |
| 轴向静刚度 | ≥150N/μm |
| 轴端径向刚度 | ≥150N/μm |
| 前端径向跳动 | ≤0.0005mm |
| 轴向窜动 | ≤0.0005mm |
| 回转精度 | ≤0.0002mm |
| 驱动形式 | 后置式电机驱动 |
| 旋转方向 | 顺时针 |
| 最高转速 | 3000rpm |
| 最大频率 | 100Hz |
| 电机类型 | 异步电机 |
| 额定电压 | 300V |
| 输出功率（S1 100%） | 5.5kW |
| 输出扭矩（S1 100%） | 35N·m |
| 额定电流（S1 100%） | 14A |
| 电机冷却方式 | 油冷（推荐） |
| 适用范围 | 用于外圆、凸轮磨床 |
| 净重 | 278±10kg |

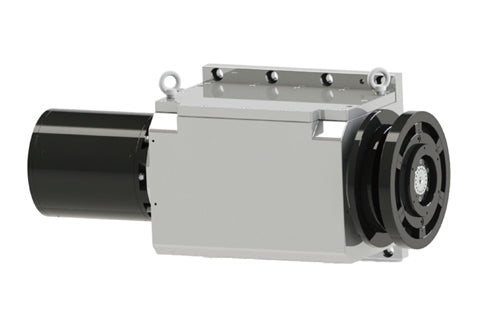

Compatible model: Haozhi DYFDM-150(080)15/5.5-XWS
Reference series: 电主轴
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
