Encoder Signal Cable Compatible with Haozhi DYFDM-450(290)01/5-WS液静压转台 Spindle
Encoder Signal Cable Compatible with Haozhi DYFDM-450(290)01/5-WS液静压转台 Spindle
Please contact customer service for a quotation before ordering.
下单前请联系客服确认价格、交期、编码器类型、接口、针脚定义及适配性。
Compatible Encoder Signal Cable
This is a third-party replacement encoder feedback / signal cable designed for use with Haozhi DYFDM-450(290)01/5-WS液静压转台 spindle systems. It is not manufactured or endorsed by Haozhi. The connector type, pin assignment, shielding, cable material and finished length are produced according to the customer's confirmed machine configuration.
Key Features
- Flexible signal cable construction suitable for moving industrial equipment.
- Shielded cable options designed to reduce electromagnetic interference.
- PVC or PUR jacket options for different installation environments.
- Custom connector configuration and finished cable length available.
- Continuity and pin-to-pin electrical testing available before shipment.
Drag Chain Installation
For drag-chain use, please provide the required bending radius, travel speed, cycle frequency and installation environment so that a suitable continuous-flex cable can be selected.
Information Required Before Ordering
- Exact spindle, encoder and machine model.
- Clear photographs of both connectors and their keying.
- Original wiring diagram or confirmed pin assignment.
- Required finished cable length.
- Drag-chain movement and environmental requirements.

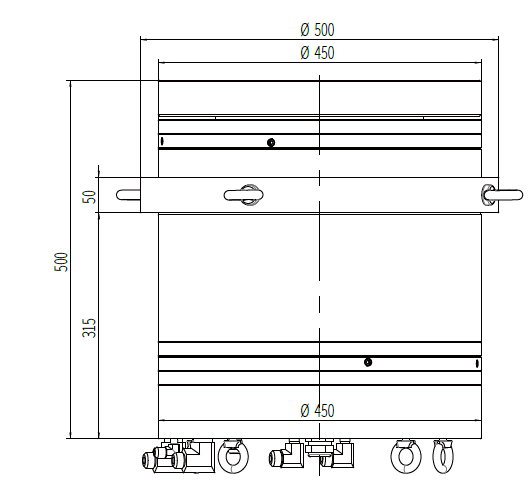

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 盘面直径 | Φ450mm |
|---|---|
| 主轴油牌号 | ISO VG10 |
| 供油压力 | 3.0MPa |
| 轴向静刚度 | ≥4000N/μm |
| 前端径向跳动 | ≤0.001mm |
| 端面跳动 | ≤0.001mm |
| 回转精度 | ≤0.0003mm |
| 驱动形式 | 内置式电机驱动 |
| 旋转方向 | 双向旋转 |
| 最高转速 | 150rpm |
| 最大频率 | 42Hz |
| 电机类型 | 同步电机 |
| 额定电压 | 380V |
| 输出功率 S1 100% | 5kW |
| 输出扭矩 S1 100% | 398N.m |
| 额定电流 S1 100% | 10.5A |
| 电机冷却方式 | 水冷 (推荐) |

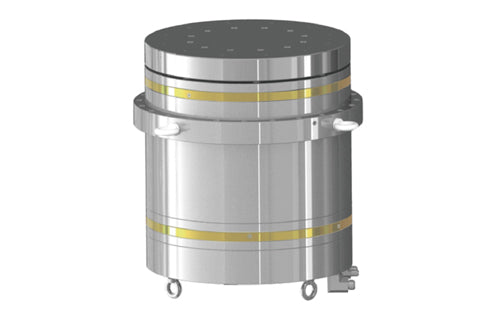

Compatible model: Haozhi DYFDM-450(290)01/5-WS液静压转台
Reference series: 液静压转台
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
