Encoder Signal Cable Compatible with Haozhi 超脉冲CD1 XtrapulsCD1 Spindle
Encoder Signal Cable Compatible with Haozhi 超脉冲CD1 XtrapulsCD1 Spindle
Please contact customer service for a quotation before ordering.
下单前请联系客服确认价格、交期、编码器类型、接口、针脚定义及适配性。
Compatible Encoder Signal Cable
This is a third-party replacement encoder feedback / signal cable designed for use with Haozhi 超脉冲CD1 XtrapulsCD1 spindle systems. It is not manufactured or endorsed by Haozhi. The connector type, pin assignment, shielding, cable material and finished length are produced according to the customer's confirmed machine configuration.
Key Features
- Flexible signal cable construction suitable for moving industrial equipment.
- Shielded cable options designed to reduce electromagnetic interference.
- PVC or PUR jacket options for different installation environments.
- Custom connector configuration and finished cable length available.
- Continuity and pin-to-pin electrical testing available before shipment.
Drag Chain Installation
For drag-chain use, please provide the required bending radius, travel speed, cycle frequency and installation environment so that a suitable continuous-flex cable can be selected.
Information Required Before Ordering
- Exact spindle, encoder and machine model.
- Clear photographs of both connectors and their keying.
- Original wiring diagram or confirmed pin assignment.
- Required finished cable length.
- Drag-chain movement and environmental requirements.
Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 功能 | 多功能交流执行器 标准操作模式 可配置旋转变压器和编码器 |
|---|---|
| 功率级 | 交流或直流电源 绝缘栅双极型晶体管（IGBT）功率级 动态制动 集成电磁兼容性（EMC）滤波器 最大电流：16.5 A / 230 V - 90 A / 480 V |
| 工具 | 设置向导 自动调谐 引擎库 示波器 |
| 接口 | RS-232 各种现场总线 数字和模拟输入/输出 |

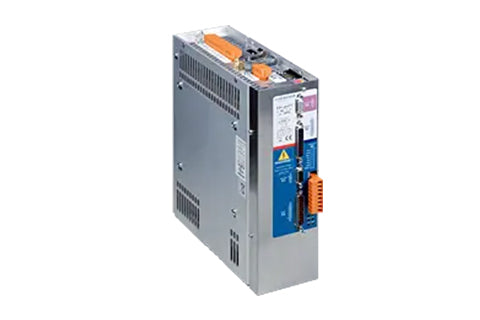

Compatible model: Haozhi 超脉冲CD1 XtrapulsCD1
Reference series: 伺服驱动器
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
