Encoder Signal Cable Compatible with Haozhi DGZM-18006 Spindle
Encoder Signal Cable Compatible with Haozhi DGZM-18006 Spindle
Please contact customer service for a quotation before ordering.
下单前请联系客服确认价格、交期、编码器类型、接口、针脚定义及适配性。
Compatible Encoder Signal Cable
This is a third-party replacement encoder feedback / signal cable designed for use with Haozhi DGZM-18006 spindle systems. It is not manufactured or endorsed by Haozhi. The connector type, pin assignment, shielding, cable material and finished length are produced according to the customer's confirmed machine configuration.
Key Features
- Flexible signal cable construction suitable for moving industrial equipment.
- Shielded cable options designed to reduce electromagnetic interference.
- PVC or PUR jacket options for different installation environments.
- Custom connector configuration and finished cable length available.
- Continuity and pin-to-pin electrical testing available before shipment.
Drag Chain Installation
For drag-chain use, please provide the required bending radius, travel speed, cycle frequency and installation environment so that a suitable continuous-flex cable can be selected.
Information Required Before Ordering
- Exact spindle, encoder and machine model.
- Clear photographs of both connectors and their keying.
- Original wiring diagram or confirmed pin assignment.
- Required finished cable length.
- Drag-chain movement and environmental requirements.

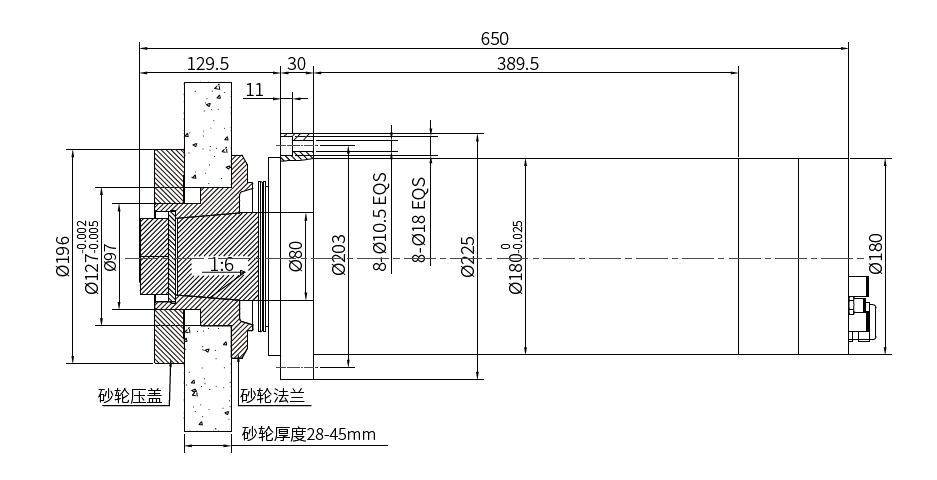

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 主轴直径 | Φ180mm |
|---|---|
| 最高转速 | 6,000rpm |
| 最大频率 | 260Hz |
| 额定转速 | 4,000rpm |
| 额定频率 | 200Hz |
| 额定电压 | 380V |
| 额定电流 | 50A |
| 额定功率 | 25kW |
| 额定扭矩 | 61.7N·m |
| 电机类型 | 异步感应 |
| 轴承类型 | 钢珠球轴承 |
| 冷却方式 | 水冷 |
| 冷却流量 | 6-8L/min (水压 0.25MPa) |
| 电机温度传感器类型 | PTC |
| 振动速度 | ≤0.8mm/s |
| 重量 | 94±2kg |
Compatible model: Haozhi DGZM-18006
Reference series: 外圆磨系列
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
