Compatible Drag Chain Power Cable
This is a third-party replacement drag-chain power cable designed for use with Haozhi DGZM-15010/13 spindle systems. It is not manufactured or endorsed by Haozhi. Connectors, pin assignment, shielding, cable material and length are produced according to the customer's confirmed machine configuration.
Key Features
- Continuous-flex cable construction for drag-chain applications.
- Shielded design options for industrial motor power transmission.
- Oil-resistant, abrasion-resistant PVC or PUR jacket options.
- Custom cable length and connector configuration available.
- Each finished cable can be electrically tested before shipment.
Encoder Signal Cable Also Available
A matching encoder feedback / signal cable compatible with the Haozhi DGZM-15010/13 spindle can also be supplied. Please provide connector photographs, a wiring diagram or pinout when requesting an encoder signal cable.
Information Required Before Ordering
- Exact spindle and machine model.
- Clear photographs of both connectors and their keying.
- Pin assignment or original wiring diagram.
- Required finished cable length.
- Installation environment and drag-chain bending requirements.

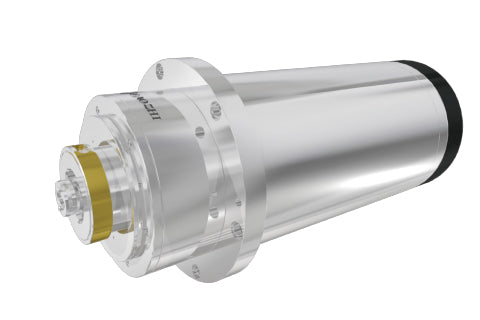

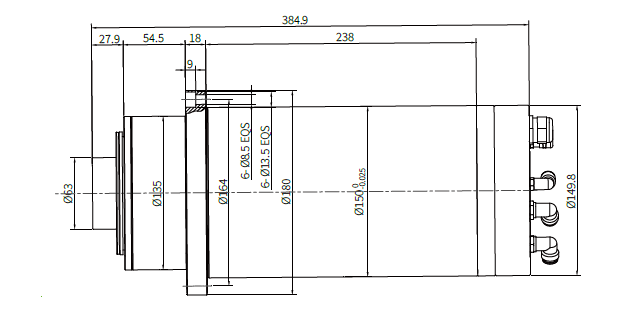

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| Spindle Diameter | Φ150mm |
|---|---|
| Maximum Speed | 10,000rpm |
| Maximum Frequency | 334Hz |
| Rated Speed | 6,300rpm |
| Rated Frequency | 210Hz |
| Rated Voltage | 380V |
| Rated Current | 25A |
| Rated Power | 13kW |
| Rated Torque | 20N·m |
| Motor Type | Asynchronous Induction |
| Bearing Type | Ceramic Ball Bearings |
| Cooling Method | Water Cooling |
| Cooling Flow | ≥3.5L/min (Water Pressure 0.25MPa) |
Compatible model: Haozhi DGZM-15010/13
Reference series: Tool Grinding Machine Series
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
