Drag Chain Power Cable Compatible with Haozhi DYFDM-125(080)66/35-XWS Spindle
Drag Chain Power Cable Compatible with Haozhi DYFDM-125(080)66/35-XWS Spindle
Please contact customer service for a quotation before ordering.
Please contact customer service to confirm price, delivery time, interface, pin definition, and compatibility before placing an order.
Compatible Drag Chain Power Cable
This is a third-party replacement drag-chain power cable designed for use with Haozhi DYFDM-125(080)66/35-XWS spindle systems. It is not manufactured or endorsed by Haozhi. Connectors, pin assignment, shielding, cable material and length are produced according to the customer's confirmed machine configuration.
Key Features
- Continuous-flex cable construction for drag-chain applications.
- Shielded design options for industrial motor power transmission.
- Oil-resistant, abrasion-resistant PVC or PUR jacket options.
- Custom cable length and connector configuration available.
- Each finished cable can be electrically tested before shipment.
Encoder Signal Cable Also Available
A matching encoder feedback / signal cable compatible with the Haozhi DYFDM-125(080)66/35-XWS spindle can also be supplied. Please provide connector photographs, a wiring diagram or pinout when requesting an encoder signal cable.
Information Required Before Ordering
- Exact spindle and machine model.
- Clear photographs of both connectors and their keying.
- Pin assignment or original wiring diagram.
- Required finished cable length.
- Installation environment and drag-chain bending requirements.

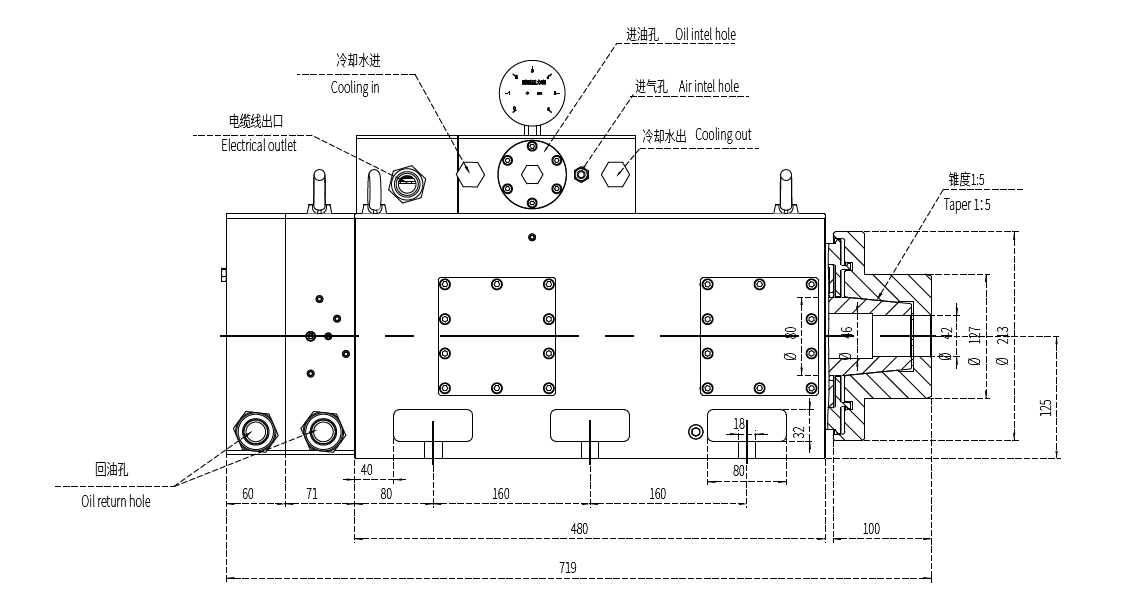

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| Center Height | 125mm |
|---|---|
| Lubricating Oil Grade | ISO VG2 |
| Oil Supply Pressure | 2.5-3.0MPa |
| Axial Static Stiffness | ≥150N/μm |
| Radial Stiffness at Shaft End | ≥260N/μm |
| Radial Runout at Front End | ≤0.0003mm |
| Axial Runout | ≤0.0005mm |
| Rotational Accuracy | ≤0.0001mm |
| Drive Type | Built-in Motor Drive |
| Rotation Direction | Clockwise |
| Max Speed | 6000rpm |
| Max Frequency | 200Hz |
| Motor Type | Asynchronous Motor |
| Rated Voltage | 380V |
| Output Power (S1 100%) | 35kW |
| Output Torque (S1 100%) | 56.9N·m |
| Rated Current (S1 100%) | 68A |
| Motor Cooling Method | Oil Cooling (Recommended) |
| Scope of Application | For external cylindrical and cam grinding machines |
| Net Weight | 320±10kg |
Compatible model: Haozhi DYFDM-125(080)66/35-XWS
Reference series: Motorized Spindles
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
