Drag Chain Power Cable Compatible with Haozhi Super Motor — DGZX-19018/20-BBT Spindle
Drag Chain Power Cable Compatible with Haozhi Super Motor — DGZX-19018/20-BBT Spindle
Please contact customer service for a quotation before ordering.
Please contact customer service before placing an order to confirm the price, delivery date, interfaces, pin definitions, and compatibility.
Compatible Drag Chain Power Cable
This is a third-party replacement drag-chain power cable designed for use with Haozhi 超级电机 — DGZX-19018/20-BBT spindle systems. It is not manufactured or endorsed by Haozhi. Connectors, pin assignment, shielding, cable material and length are produced according to the customer's confirmed machine configuration.
Key Features
- Continuous-flex cable construction for drag-chain applications.
- Shielded design options for industrial motor power transmission.
- Oil-resistant, abrasion-resistant PVC or PUR jacket options.
- Custom cable length and connector configuration available.
- Each finished cable can be electrically tested before shipment.
Encoder Signal Cable Also Available
A matching encoder feedback / signal cable compatible with the Haozhi 超级电机 — DGZX-19018/20-BBT spindle can also be supplied. Please provide connector photographs, a wiring diagram or pinout when requesting an encoder signal cable.
Information Required Before Ordering
- Exact spindle and machine model.
- Clear photographs of both connectors and their keying.
- Pin assignment or original wiring diagram.
- Required finished cable length.
- Installation environment and drag-chain bending requirements.

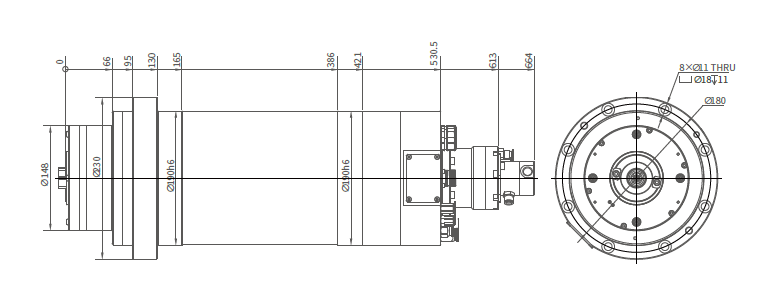

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| Parameter Item | Low-speed winding |
|---|---|
| Spindle mating diameter | Φ190mm |
| Tool holder interface type | BBT40 |
| Bearing lubrication type | Grease |
| Motor type | Dual-winding asynchronous motor |
| Maximum speed | 6000 rpm |
| Voltage | 175 V |
| Rated power (S1-100%) | 20 kW |
| Rated torque (S1-100%) | 105 N·m |
| Rated power (S6-40%) | 30 kW |
| Rated torque (S6-40%) | 157.5 N·m |
| Cooling method | Water cooling (recommended) |
| External tool cooling (annular spray) | Water / Oil / Oil mist / Air |
| Tool change method | Hydraulic cylinder |
Compatible model: Haozhi 超级电机 — DGZX-19018/20-BBT
Reference series: Machining Center Series Spindles
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
