Encoder Signal Cable Compatible with Haozhi DGZYM-2000.4/6.5 Spindle
Encoder Signal Cable Compatible with Haozhi DGZYM-2000.4/6.5 Spindle
Please contact customer service for a quotation before ordering.
Before placing an order, please contact customer service to confirm price, lead time, encoder type, interface, pin definition, and compatibility.
Compatible Encoder Signal Cable
This is a third-party replacement encoder feedback / signal cable designed for use with Haozhi DGZYM-2000.4/6.5 spindle systems. It is not manufactured or endorsed by Haozhi. The connector type, pin assignment, shielding, cable material and finished length are produced according to the customer's confirmed machine configuration.
Key Features
- Flexible signal cable construction suitable for moving industrial equipment.
- Shielded cable options designed to reduce electromagnetic interference.
- PVC or PUR jacket options for different installation environments.
- Custom connector configuration and finished cable length available.
- Continuity and pin-to-pin electrical testing available before shipment.
Drag Chain Installation
For drag-chain use, please provide the required bending radius, travel speed, cycle frequency and installation environment so that a suitable continuous-flex cable can be selected.
Information Required Before Ordering
- Exact spindle, encoder and machine model.
- Clear photographs of both connectors and their keying.
- Original wiring diagram or confirmed pin assignment.
- Required finished cable length.
- Drag-chain movement and environmental requirements.

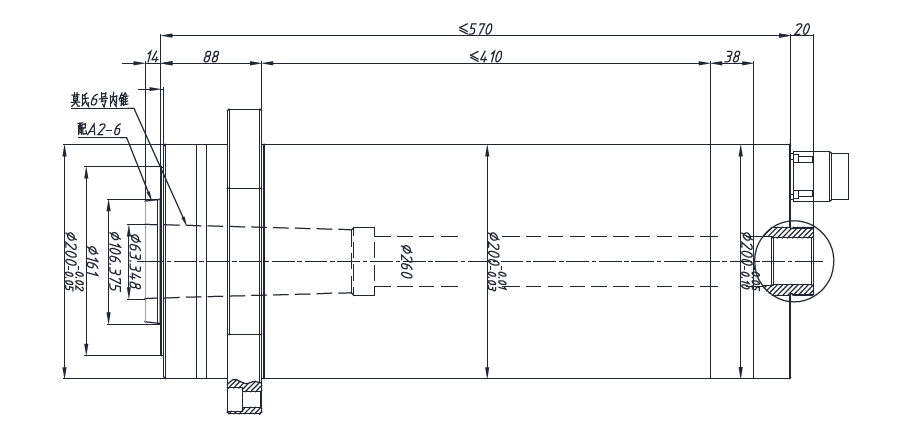

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| Spindle diameter | Φ200mm |
|---|---|
| Max. speed | 400rpm |
| Max. frequency | 66.7Hz |
| Rated speed | 250rpm |
| Rated frequency | 41.7Hz |
| Rated voltage | 220V |
| Rated current (S1) | 23.5A |
| Rated power (S1) | 6.5kW |
| Rated torque (S1) | 248.3N·m |
| Motor type | Permanent magnet synchronous |
| Bearing lubrication | Grease |
| Cooling method | Oil cooling / Water cooling |
| Cooling flow rate | 6-8L/min（0.25MPa） |
| Stator temperature sensor type | KTY and PTC |
Compatible model: Haozhi DGZYM-2000.4/6.5
Reference series: Workpiece spindle series
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
