Encoder Signal Cable Compatible with Haozhi DYFDM-150(035)240/7.5-XWS Spindle
Encoder Signal Cable Compatible with Haozhi DYFDM-150(035)240/7.5-XWS Spindle
Please contact customer service for a quotation before ordering.
Please contact customer service to confirm price, delivery time, encoder type, interface, pin definition and compatibility before placing an order.
Compatible Encoder Signal Cable
This is a third-party replacement encoder feedback / signal cable designed for use with Haozhi DYFDM-150(035)240/7.5-XWS spindle systems. It is not manufactured or endorsed by Haozhi. The connector type, pin assignment, shielding, cable material and finished length are produced according to the customer's confirmed machine configuration.
Key Features
- Flexible signal cable construction suitable for moving industrial equipment.
- Shielded cable options designed to reduce electromagnetic interference.
- PVC or PUR jacket options for different installation environments.
- Custom connector configuration and finished cable length available.
- Continuity and pin-to-pin electrical testing available before shipment.
Drag Chain Installation
For drag-chain use, please provide the required bending radius, travel speed, cycle frequency and installation environment so that a suitable continuous-flex cable can be selected.
Information Required Before Ordering
- Exact spindle, encoder and machine model.
- Clear photographs of both connectors and their keying.
- Original wiring diagram or confirmed pin assignment.
- Required finished cable length.
- Drag-chain movement and environmental requirements.

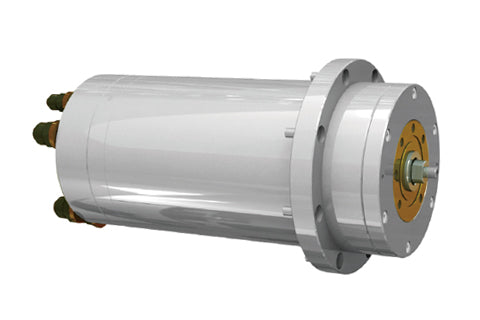

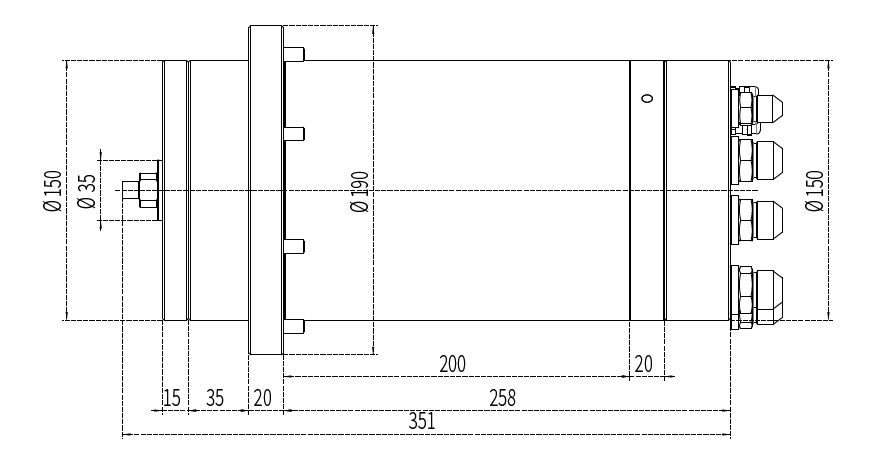

Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| Center Height | φ150mm |
|---|---|
| Lubricating Oil Grade | ISO VG2 |
| Oil Supply Pressure | 2.5-3.0MPa |
| Axial Static Stiffness | ≥50N/μm |
| Radial Stiffness at Shaft End | ≥40N/μm |
| Front End Radial Runout | ≤0.0003mm |
| Axial Play | ≤0.0003mm |
| Rotation Accuracy | ≤0.0001mm |
| Drive Type | Built-in Motor Drive |
| Rotation Direction | Counter-clockwise |
| Maximum Speed | 24000rpm |
| Maximum Frequency | 800Hz |
| Motor Type | Asynchronous Motor |
| Rated Voltage | 380V |
| Output Power (S1 100%) | 7.5kW |
| Output Torque (S1 100%) | 3N·m |
| Rated Current (S1 100%) | 15A |
| Motor Cooling Method | Oil Cooling (Recommended) |
| Scope of Application | Used for high-speed internal grinding machines |
| Net Weight | 43±2kg |
Compatible model: Haozhi DYFDM-150(035)240/7.5-XWS
Reference series: Motor Spindle
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
