Encoder Signal Cable Compatible with Haozhi DQZAJ02-26-3/30 Spindle
Encoder Signal Cable Compatible with Haozhi DQZAJ02-26-3/30 Spindle
Please contact customer service for a quotation before ordering.
Before ordering, please contact customer service to confirm pricing, lead time, encoder type, interface, pin definition, and compatibility.
Compatible Encoder Signal Cable
This is a third-party replacement encoder feedback / signal cable designed for use with Haozhi 连杆式DQZAJ02-26-3／30 spindle systems. It is not manufactured or endorsed by Haozhi. The connector type, pin assignment, shielding, cable material and finished length are produced according to the customer's confirmed machine configuration.
Key Features
- Flexible signal cable construction suitable for moving industrial equipment.
- Shielded cable options designed to reduce electromagnetic interference.
- PVC or PUR jacket options for different installation environments.
- Custom connector configuration and finished cable length available.
- Continuity and pin-to-pin electrical testing available before shipment.
Drag Chain Installation
For drag-chain use, please provide the required bending radius, travel speed, cycle frequency and installation environment so that a suitable continuous-flex cable can be selected.
Information Required Before Ordering
- Exact spindle, encoder and machine model.
- Clear photographs of both connectors and their keying.
- Original wiring diagram or confirmed pin assignment.
- Required finished cable length.
- Drag-chain movement and environmental requirements.
Compatible Equipment Reference Specifications

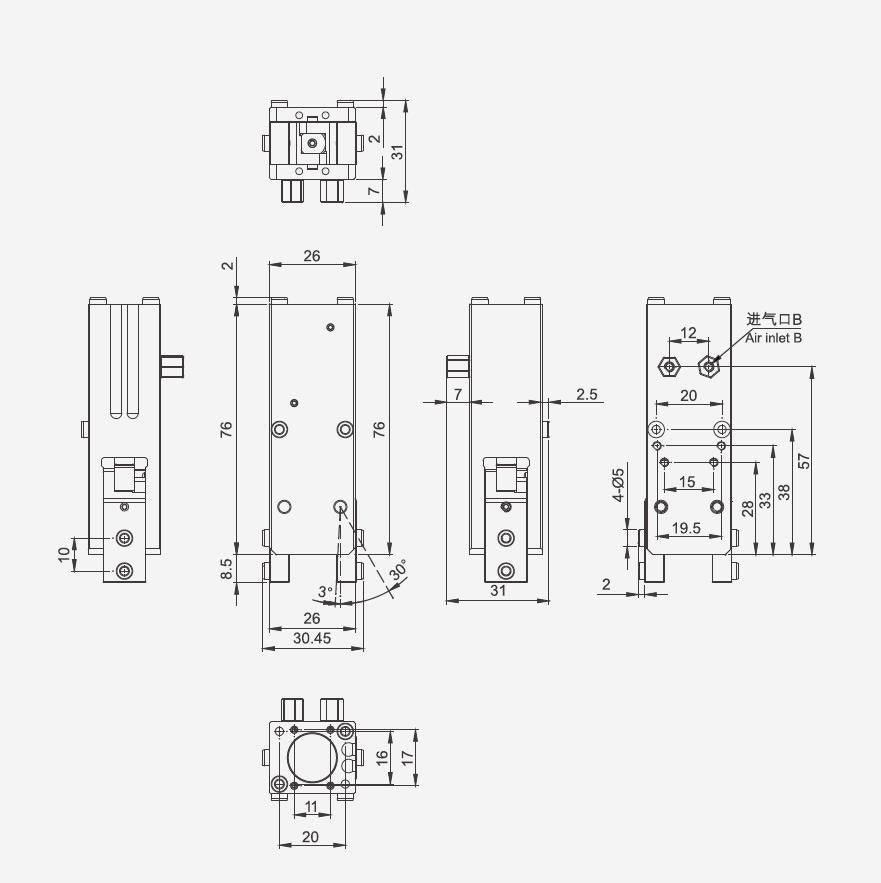

The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| 产品型号 | Product model |
|---|---|
| 夹紧扭矩 (Nm) | Clamping torque (Nm) |
| 重复定位精度(mm) | Repeated positioning accuracy (mm) |
| 额定工作气压(MPa) | Rated working air pressure (Mpa) |
| 气指打开角度（°） | Air fingering opening angle (°) |
| 夹紧时每指角度（°） | Angle per finger when clamping (°) |
| 夹紧、松开时间 (s) | Clamping and releasing time (s) |
Compatible model: Haozhi 连杆式DQZAJ02-26-3／30
Reference series: 张角气动二指
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
