Encoder Signal Cable Compatible with Haozhi XtraforsMSS Spindle
Encoder Signal Cable Compatible with Haozhi XtraforsMSS Spindle
Please contact customer service for a quotation before ordering.
Please contact customer service before ordering to confirm price, lead time, encoder type, interface, pin definition, and compatibility.
Compatible Encoder Signal Cable
This is a third-party replacement encoder feedback / signal cable designed for use with Haozhi XtraforsMSS spindle systems. It is not manufactured or endorsed by Haozhi. The connector type, pin assignment, shielding, cable material and finished length are produced according to the customer's confirmed machine configuration.
Key Features
- Flexible signal cable construction suitable for moving industrial equipment.
- Shielded cable options designed to reduce electromagnetic interference.
- PVC or PUR jacket options for different installation environments.
- Custom connector configuration and finished cable length available.
- Continuity and pin-to-pin electrical testing available before shipment.
Drag Chain Installation
For drag-chain use, please provide the required bending radius, travel speed, cycle frequency and installation environment so that a suitable continuous-flex cable can be selected.
Information Required Before Ordering
- Exact spindle, encoder and machine model.
- Clear photographs of both connectors and their keying.
- Original wiring diagram or confirmed pin assignment.
- Required finished cable length.
- Drag-chain movement and environmental requirements.
Compatible Equipment Reference Specifications
The table below describes the referenced Haozhi equipment model and is provided only to help confirm compatibility; it is not the cable specification.
| Power | Torque 0.6 to 13.6 Nm, speed up to 6000 rpm, acceleration torque up to 10 x nominal value |
|---|---|
| Execution | Multiple standard models, custom versions, sizes from 129.5 to 193.0 mm, CSA and UL dual certification |

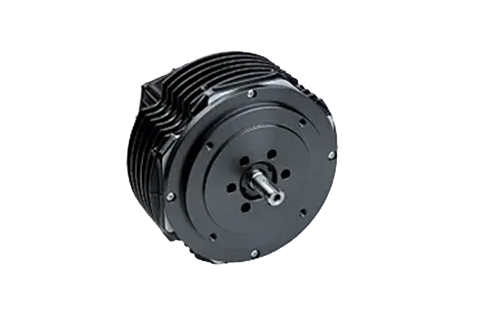

Compatible model: Haozhi XtraforsMSS
Reference series: Servo Motor
Model reference source: Haozhi official product page
Confirm compatibility before ordering
Share the original part number, machine model, connector photo, required length or wiring drawing. Our team will help verify the right configuration.
We compare model numbers, connector type, pin count and application requirements.
Length, cable jacket, shielding, pinout and connector options can be made to specification.
International shipping is available for replacement cables, connectors and custom harnesses.
